According to the packaging process requirements, the materials are packaged into bagged products by small package packaging machine or ton package packaging machine, and the products that are expired or in stock are continuously checked by automatic palletizing, automatic storage system, so as to prevent bad inventory, provide space utilization and improve management level.

System composition

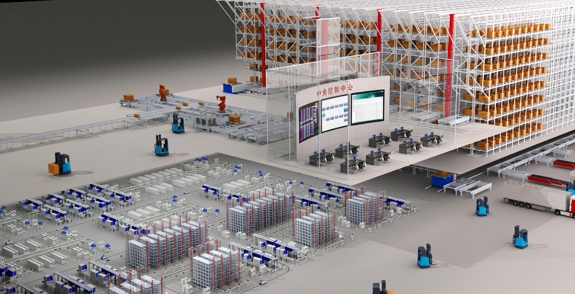

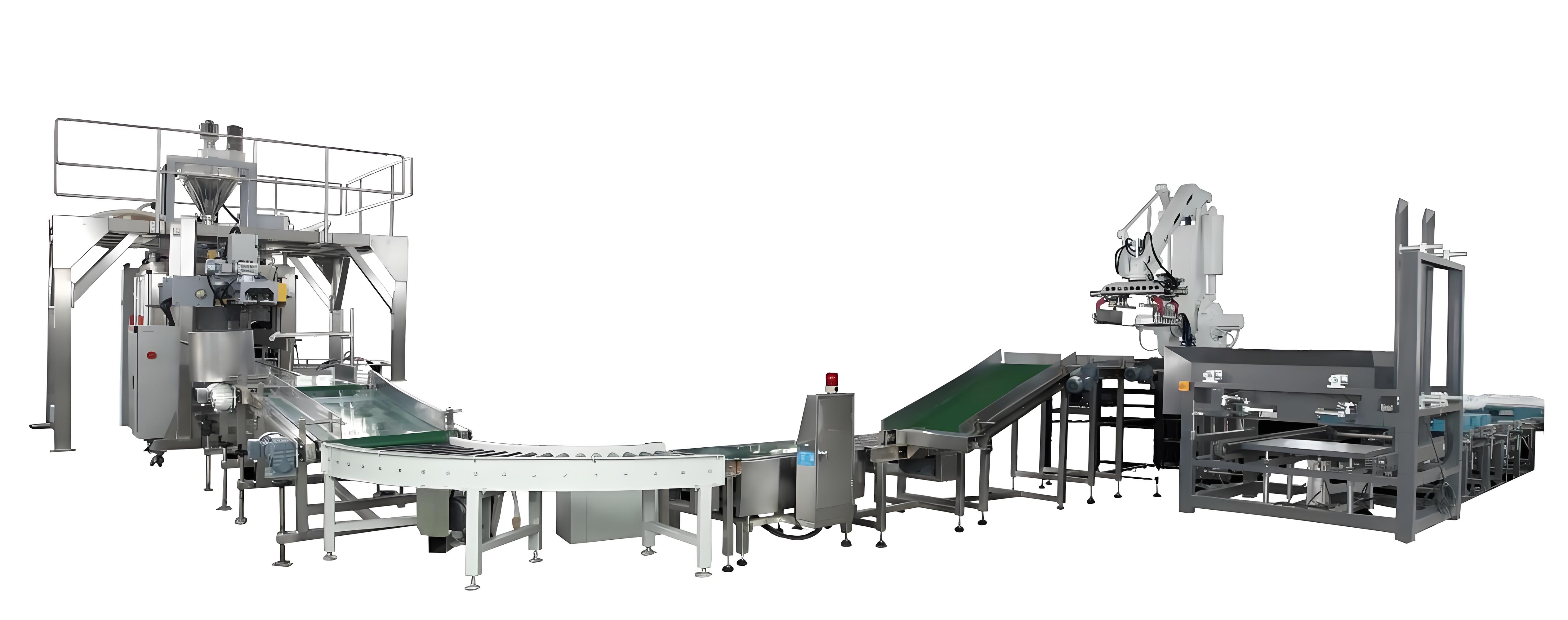

Automatic packaging and storage system generally includes packaging machine, stacker, logistics management software, conveying system, shelf system, etc.

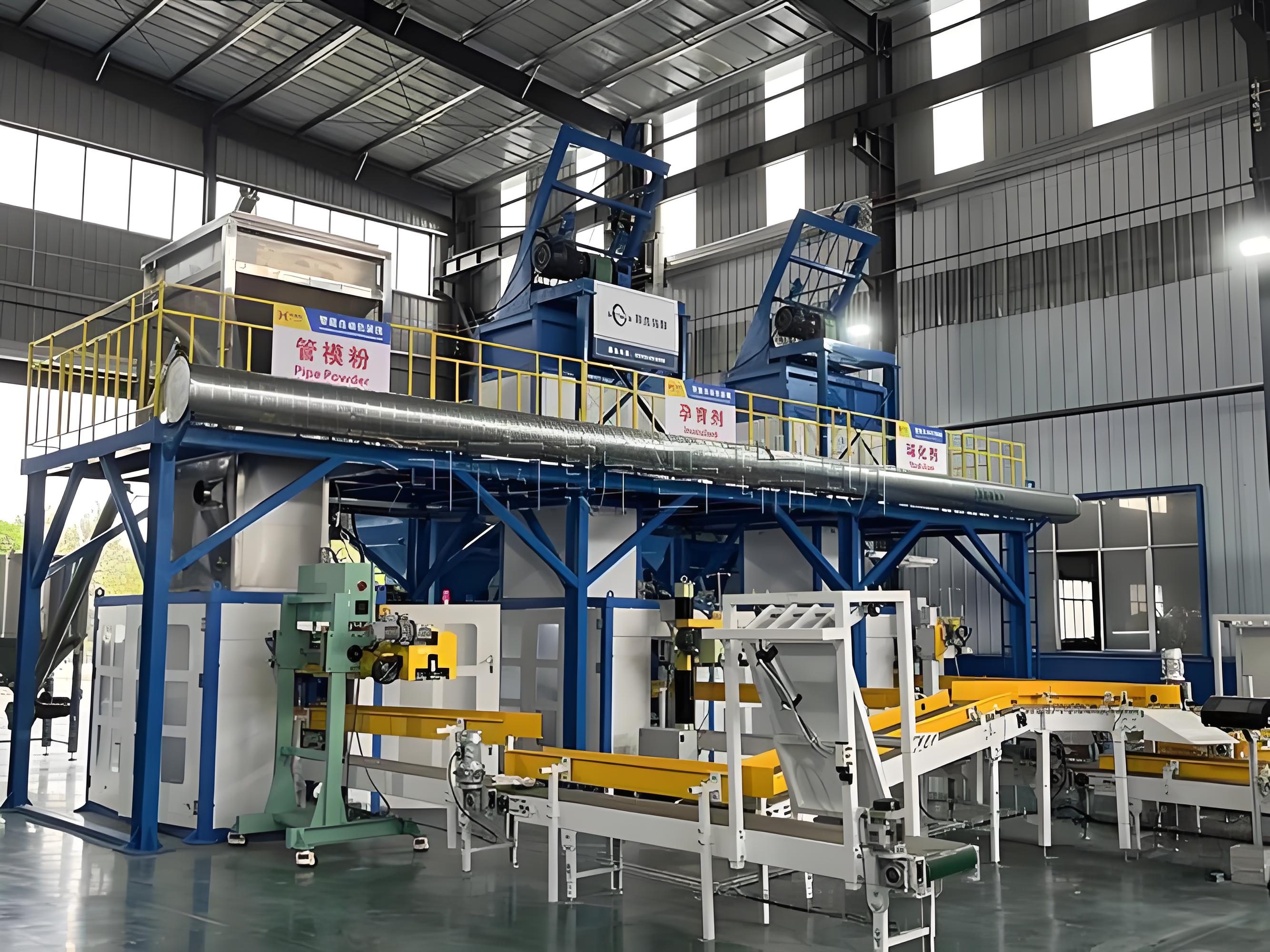

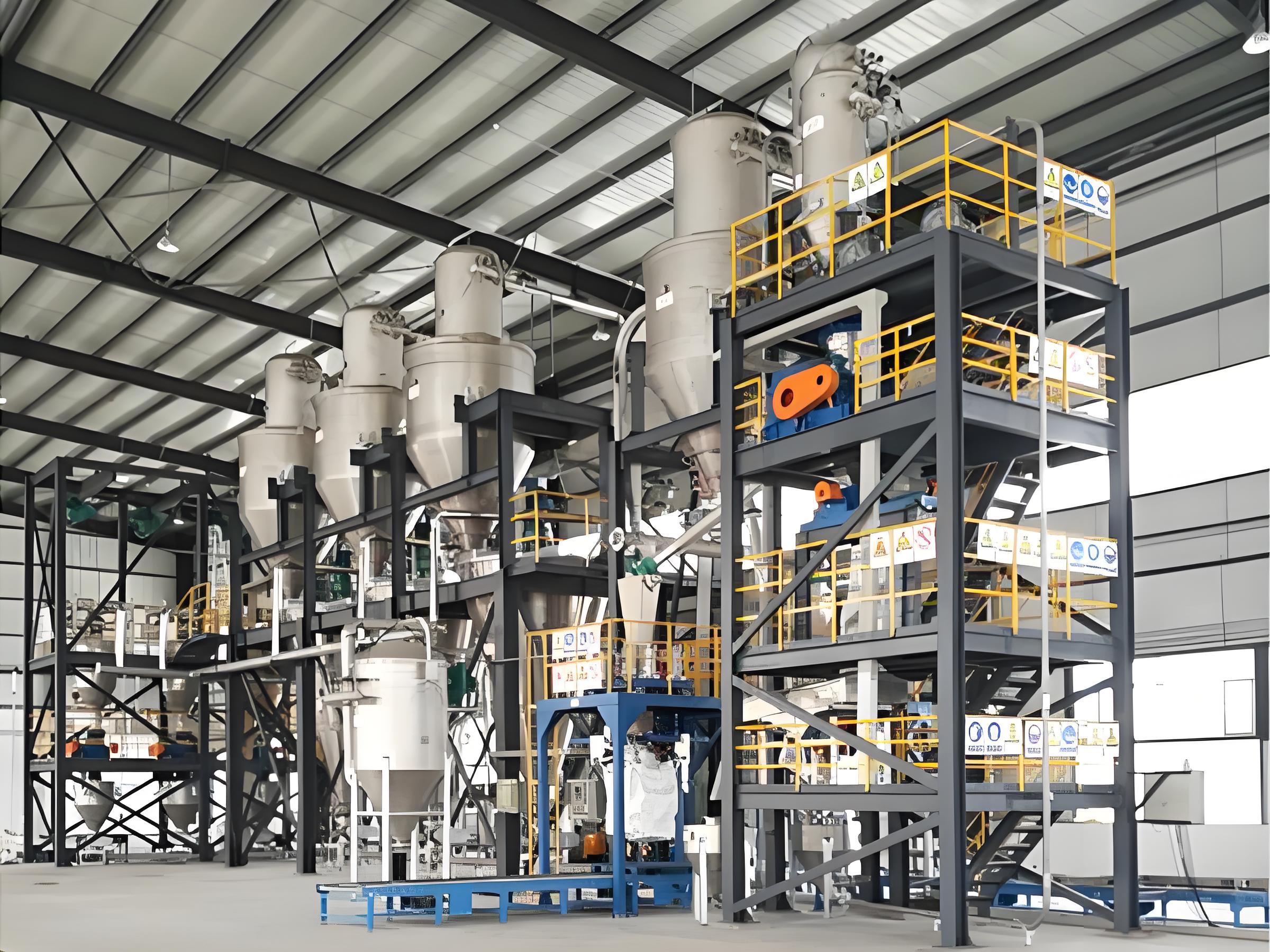

1. Packaging machine

It can be divided into ton package packaging machine and small package packaging machine. The automatic packaging machine has the functions of automatic measurement, filling, bag making, sealing, cutting, conveying, printing production batch number, adding easy incision, no material warning, mixing and so on.

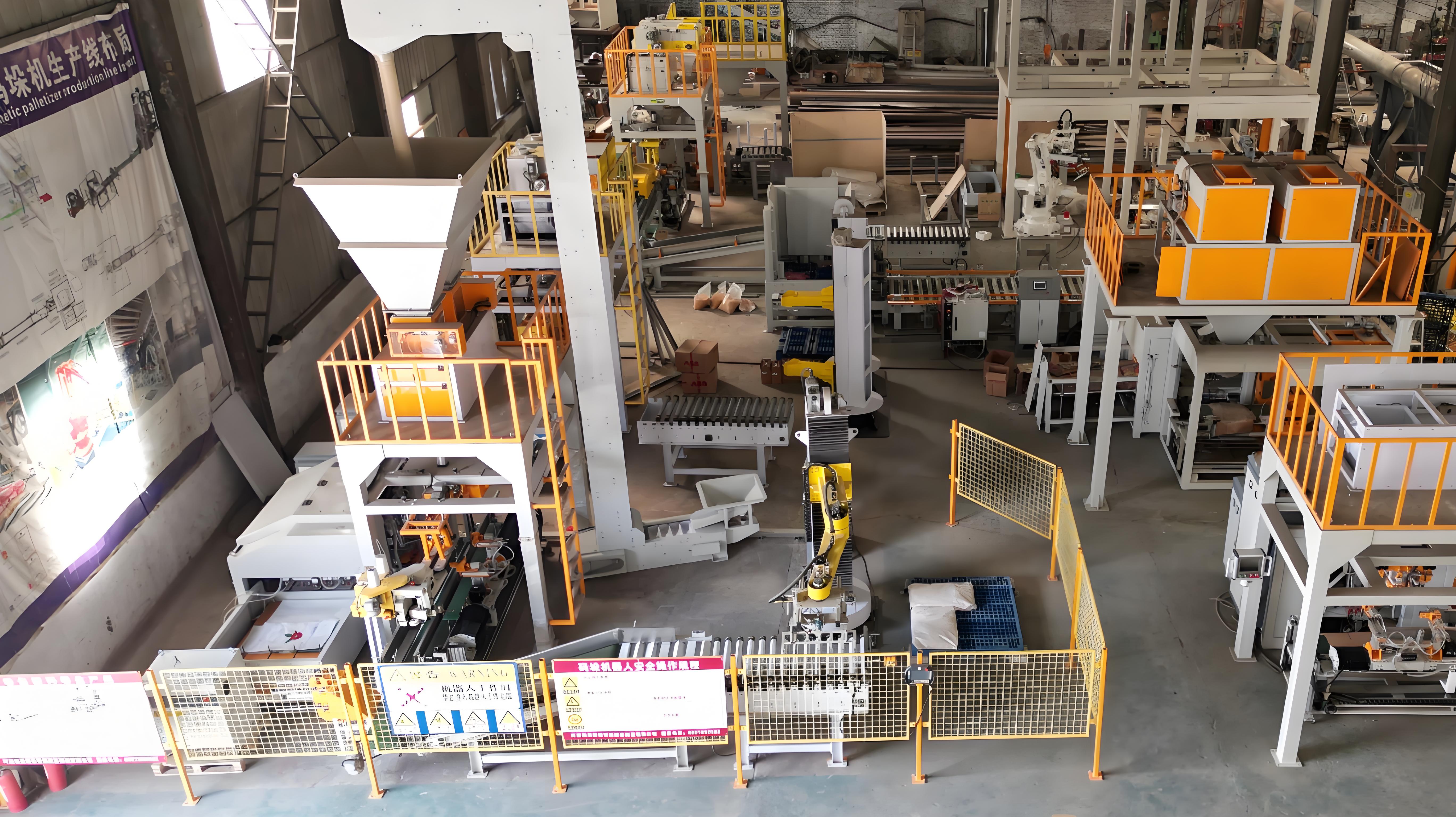

2. Stacker

The main equipment in the automatic storage system of stacker operation needs modular design, simple structure and beautiful appearance design. It has the following characteristics: laser ranging is used in the horizontal and vertical aspects, German motor reducer is used in the power part, German combined walking wheel is used in the walking device, sew vector intelligent variable-frequency controller is used for variable-frequency speed regulation, Siemens programmable controller is used, large screen display is used to guide the warehouse in and warehouse out and picking operations, etc.

3. Automated warehouse management software

Automatic warehouse management software is required to be a set of professional software based on network database and integrating information management and industrial monitoring. The information management subsystem and the company's monitoring subsystems such as MRP and ERP fully consider the security and flexibility. Usually, because the industrial monitoring subsystem commands the machinery to complete the incoming and outgoing operations automatically, when the computer network system fails (such as the network equipment hardware is broken), only ECS (equipment control server) can work, so ECS can be used as the background database server for emergency outgoing operations. In case of ECS failure, it can be operated manually through the stacker.

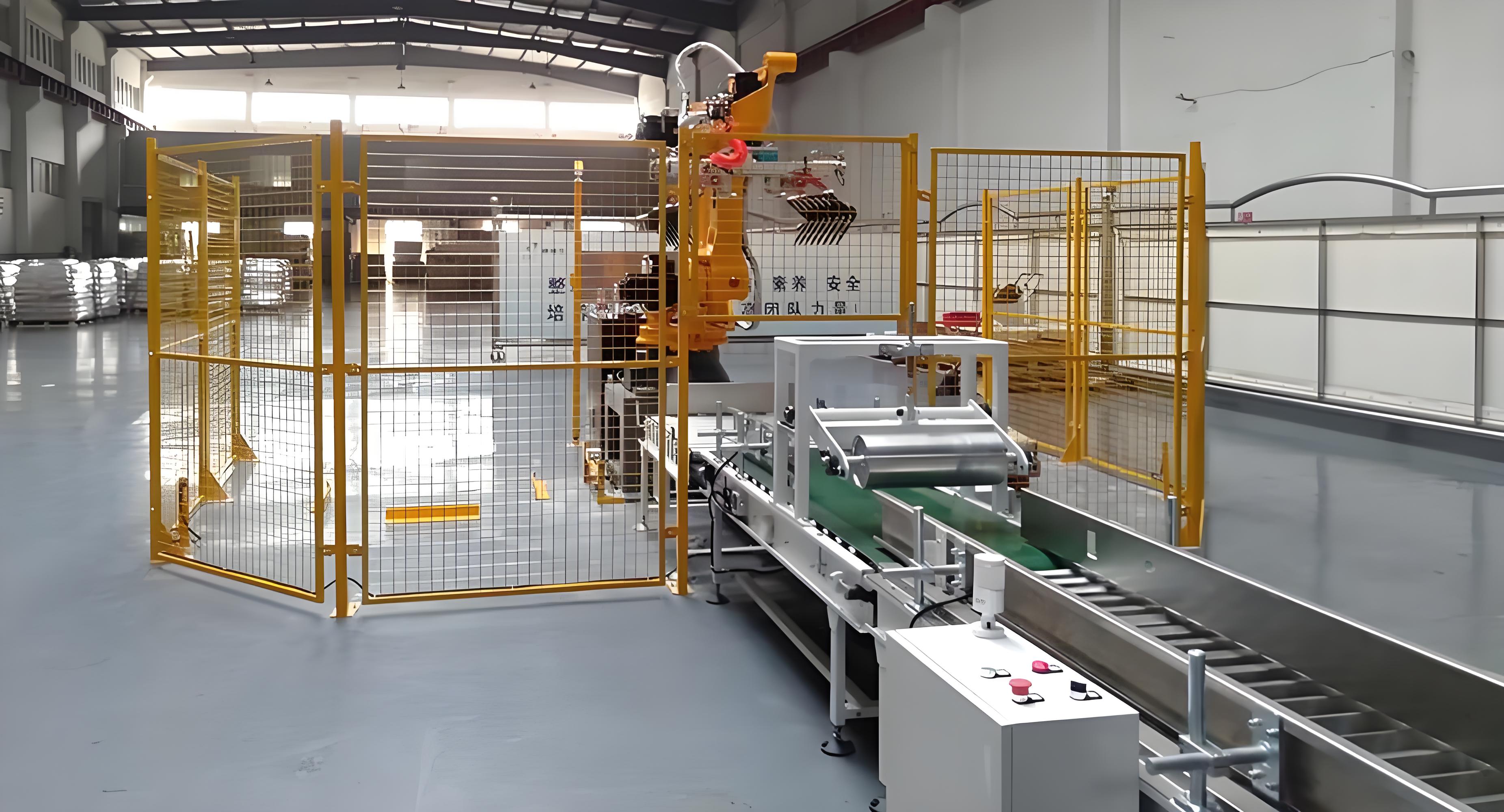

4. Conveying system

Professional conveying equipment includes roller, chain, belt leather, unpowered and movable conveying system, which can be applied to the product conveying and distribution of electronics, household appliances, food, chemistry and logistics centers. In different storage planning, different types of rollers or chain conveyors can be selected according to the process layout, and various auxiliary devices can be used to complete the continuous transportation, storage, turnover, bifurcation, confluence, lifting, etc. of materials. With PC program control system and CPU management system, it can be regarded as a complete set of automatic conveying system.

5. Digital picking rack system

The data picking system (hereinafter referred to as DPS) is a computer-aided paperless picking system. Its principle is to replace the picking list with LED electronic labels installed in each location on the shelf, transfer the order information to the electronic labels by using the control of the computer, guide the picker to complete the picking work correctly, quickly and easily, and press the confirm button to complete the picking work after the picking is completed. The computer monitors the whole process, and self

Complete the account processing automatically.

The digital picking system is composed of mobile shelves, electronic labels, stacking roller conveyor line, bar code reader, management and monitoring system.
